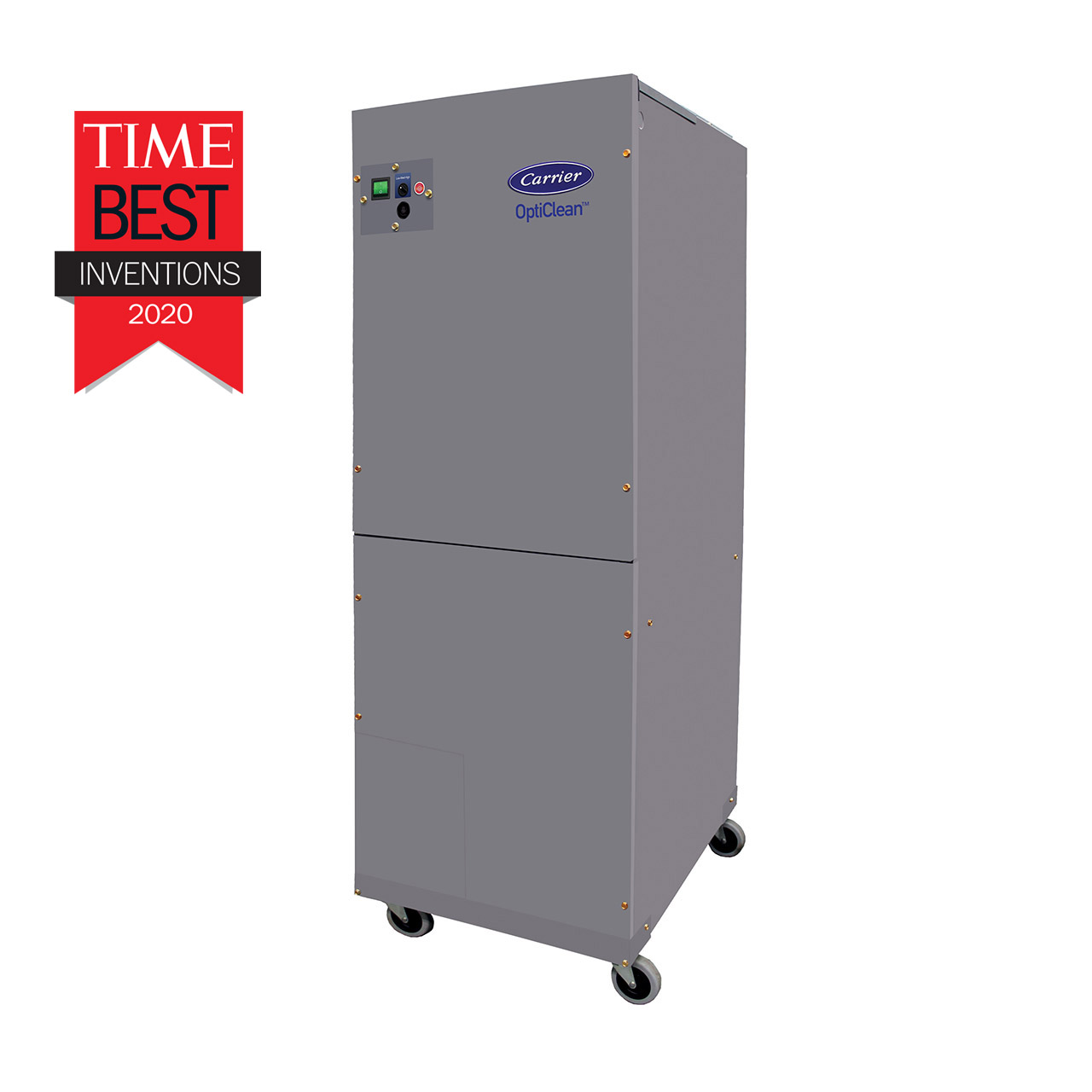

Carrier® OptiClean™ negative air pressure & air scrubbing machine

The Carrier OptiClean negative air machine is a portable, maximum 600 CFM or maximum 1500 CFM solution primarily designed to help convert normal hospital rooms into airborne infectious isolation rooms (AIIR). Designed to comply with ASHRAE’s Standard 170 for Ventilation of Health Care Facilities, the Carrier OptiClean unit uses a 99.97% efficient filter and a heavy duty, yet quiet, motor to remove filtered contaminated air from the room.

Overview

Air Scrubber — uses 99.97% efficient, long-life (~40,000 hour) HEPA filters to remove particles as small as 0.3 microns, then discharge cleaner air back into the room. Ideal for a wide range of commercial applications, including K–12 classrooms and open-air, temporary medical facilities. Negative Air Machine — helps convert normal hospital rooms into negative-pressure airborne infectious isolation rooms (AIIR) by adding a vacuum effect to the HEPA filtration capability. Designed to ASHRAE Standard 170 for Ventilation of Health Care Facilities. The units can be operate either vertically or horizontally in both modes.

Consumer Brochure

Owner’s Manual

Features

99.97% efficient, long-life HEPA filter removes particles as small as 0.3 microns
Standard MERV 7 or higher pre-filter
Minimum 600 CFM, maximum 1500 CFM
Meets or exceeds the ASHRAE Standard 170: Ventilation of Health Care Facilities
HEPA filter rack and sealing design meet air leakage requirement
Vertical design for smaller footprint vs. many competitors. Can be mounted and operated horizontally when necessary
Portable and adaptable to nearly any appropriately-sized location
Heavy-duty, lockable casters for easy transport

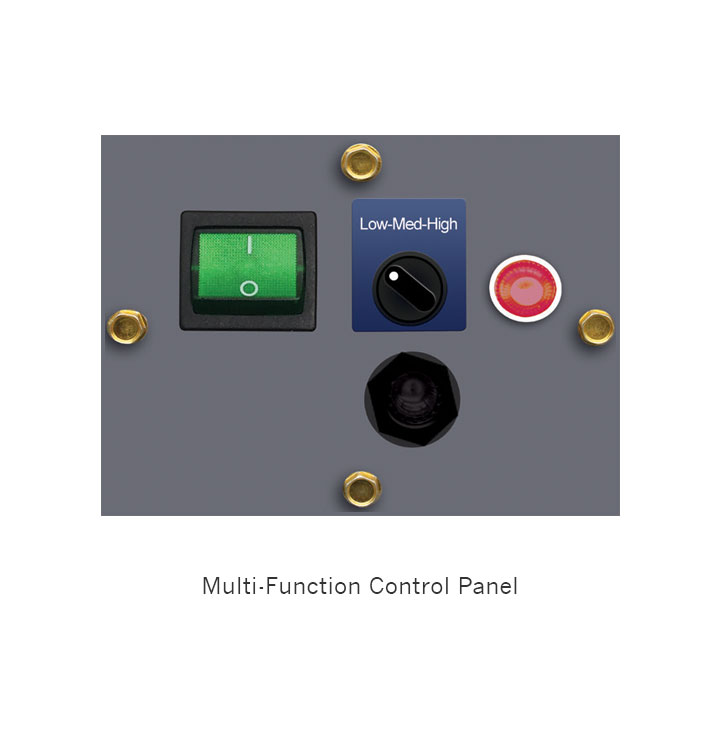

Red lighted indicator to alert user when filters are overloaded (generally means pre-filter requires replacement)
Green on/off switch illuminates to verify when running
3-second motor start delay
3-speed selector switch on 015 size model for various air flow ranges

Specifications

Negative air machine for hospital isolation rooms 99.97% efficient HEPA Filter with MERV 7 prefilter. Base Level Model - 600 CFM (FN1AAF006000) Enhanced Model - 1,500 CFM (FN1AAF015000)
